LM-S4000 4.0 m³ Synchronized Rotary
Maximum output in the rotating-cab platform for large daily pours.
Key specifications
Full technical table below. Optional engines and configurations on request — tell us your site conditions and target price.
Get Full Spec Sheet
LM-S4000 highlights
The LM-S4000 tops the synchronized rotary range with a 4.0 m³ batch and the stronger Yuchai 4108 engine. It is built for contractors who need transit-mixer volumes but keep working beyond the reach of a batching plant.
Same 270° synchronized rotation and bidirectional driving as the rest of the range, with bigger water tanks, a heavier frame and a 2,350 mm discharge height suited to truck-mixer loading and formwork pouring.
- 4.0 m³ per batch — the largest in the rotating-cab range
- Yuchai 4108 engine, 91 kW / 124 hp
- 950 L water tank for continuous large pours
- 270° synchronized rotation with 180° fan discharge
- Bidirectional driving on narrow and steep sites
- Electronic hydraulic weighing system (±0.5%)
Full technical specifications
| General | |
| Overall dimension (L×W×H) | 7790 × 3130 × 3380 mm |
| Wheelbase | 3100 mm |
| Tread | 2150 mm |
| Operating weight | 9,100 kg |
| Loader bucket capacity | 0.7 m³ |
| Driving form | Four-wheel drive (4WD) |
| Max. speed | 40 km/h |
| Max. gradeability | 35° / 40° |
| Min. turning radius | 4,400 mm |
| Min. ground clearance | 350 mm |
| Brake | Spring-applied air-release brake |
| Powertrain | |
| Engine | Yuchai 4108 turbocharged diesel (YCD4J22T-125) |
| Rated power | 91 kW (124 hp) |
| Transmission | ZL-300 hydraulic torque converter |
| Gears | 4 forward / 4 reverse, dual high-low speed |
| Fuel tank | 135 L |
| Hydraulic oil tank | 135 L |
| Engine oil | 16 L |
| Hydraulic system | |
| Reducer | Borrego 230B closed type |
| Main pump | Plunger pump R1-40/80 |
| Drum motor | Rexroth |
| Drum rotation speed | 17 rpm |
| Water & mixing | |
| Water tank | 950 L |
| Water supply | Timed relay, auto shut-off; hydraulic self-priming pump |
| Drum geometric capacity | 6.8 m³ |
| Concrete output per batch | 4.0 m³ |
| Output per hour | 15.2–19 m³/h |
| Discharge height | 2,350 mm |
| Running gear | |
| Tires | 12R22.5 steel-wire tires, front 4 + rear 2 |
| Optional engines | Cummins 4BTA3.9-C125-II · Yuchai 6-cyl · Weichai Deutz WP4G130E22 |
Specifications may be optimized continuously; the commercial contract prevails. Custom colors, engines and attachments available.

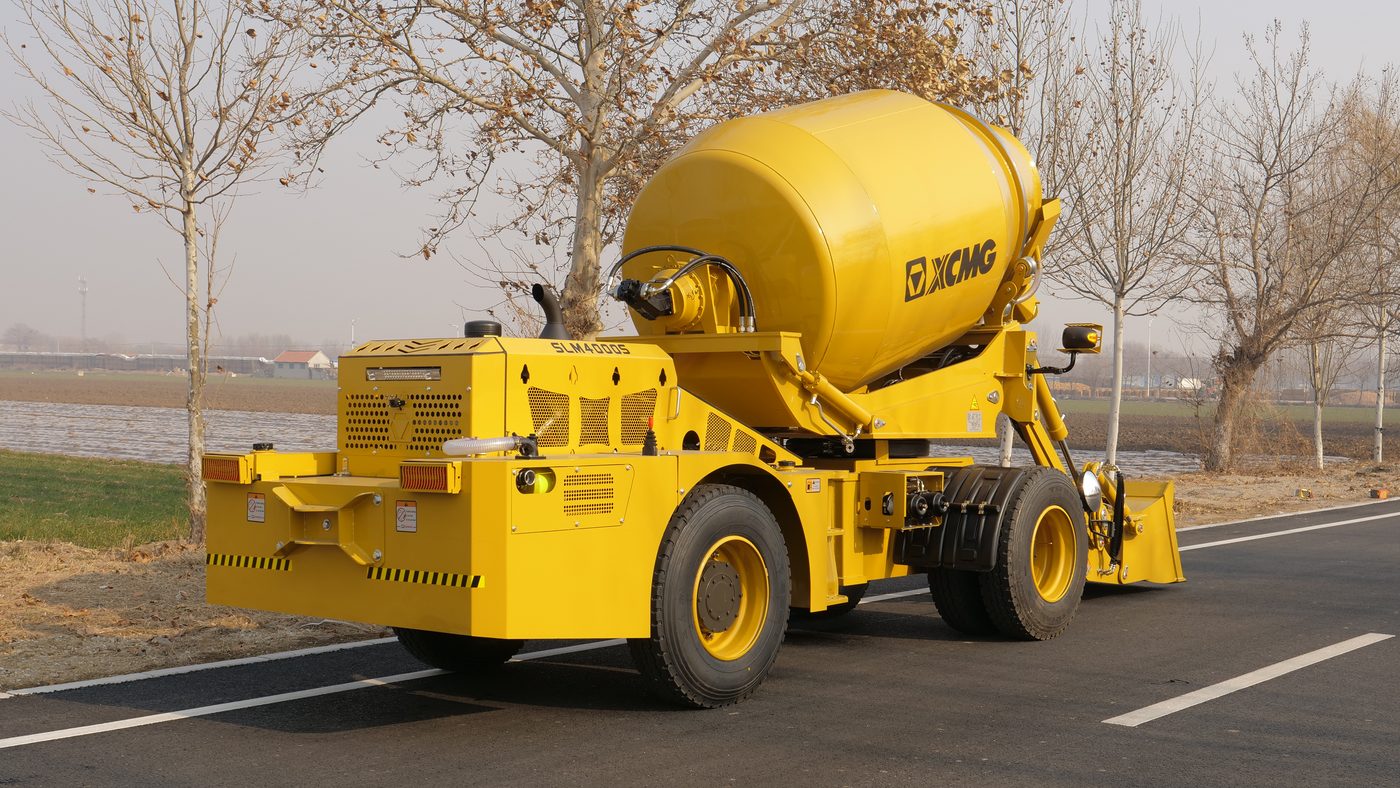

Photo gallery
